Edwin L. Barnhart

The Palenque Mapping Project, 1998 - 2000 Final Report
And The Waters of Lakam Ha: A Survey of Palenque’s Water Management
by Kirk D. French

Vea este informe en Español.

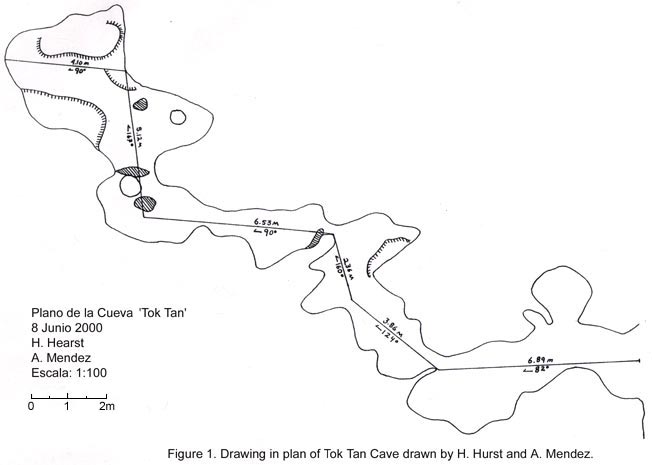

Figure 1. Drawing of plan of Tok Tan Cave drawn by H. Hearst and A. Mendez.

Research Year:  2000
Culture:  Maya
Chronology:  Classic
Location:  Chiapas, México
Site:  Palenque

Table of Contents

Previous Research
Discussions by Group
Water Management
Sources Cited
Appendix A


The ruins of Palenque, nestled in the foothills of Northern Chiapas, were once a major capital of the Classic Period Maya (A.D. 250-900). Today they are visited by over 200,000 tourists per year and have become one of the world’s most celebrated archaeological sites. The last 100 years of archaeology at Palenque has focused on exploring and restoring its beautiful ceremonial center. Thanks to a 1997 agreement between México’s Instituto Nacional de Antropología y Historia (INAH) and the California-based Pre-Columbian Art Research Institute (PARI), we are now beginning to improve our understanding of Palenque’s outer regions. A new, intensive survey was commissioned that year and the necessary funding was provided by the Foundation for the Advancement of Mesoamerican Studies, Inc. (FAMSI). Your author was asked to direct the survey.

The Palenque Mapping Project (1998-2000) was completed in August of 2000. In total, 1478 structures were identified and recorded. The site’s previous map (Robertson 1983), while covering essentially the same area, contained only 329 structures. During the course of 18 months in the forests surrounding Palenque an area of 220 hectares was investigated and determined to be over four times more densely settled than previously understood. The new map was created from over 24,500 individual data points taken at every building corner, river’s edge and topography change. Accuracy was one of the project’s major goals and as a result the locations of features on the map are correct within ±20 centimeters of error. The over 1000 structures newly recorded range from small half meter tall platforms to the largest structure ever found in Palenque, the Escondido Temple.

Click to download the report in PDF format:

The Palenque Mapping Project, 1998 - 2000 Final Report  (18.4 MB)
